Standard Locknut
Ball screw lock nut can easily and precisely secure the screw shaft and bearing. It features an anti-loosening mechanism composed of an internal hex head set screw and a mounting plate, which prevents the locking nut from loosening and ensures a firm connection. High-quality locking nuts consistently maintain the desired system preload, guaranteeing the performance and service life of the transmission system.
Features
- Strict Geometric Tolerances: HZMotion lock nuts utilize a unique precision machining process to provide consistently reliable end-face flatness and stable, accurate thread precision.
- High-Quality Raw Materials: Medium and heavy-duty lock nuts are made from 42CrMo material to ensure product performance and service life.
- Standard Sizes: Lock nut products conform to internationally mainstream dimensions, ensuring maximum compatibility and specification coverage.
- Surface treatment: Lock nuts are black-oxide treated by default for rust prevention, with other surface treatment options available.

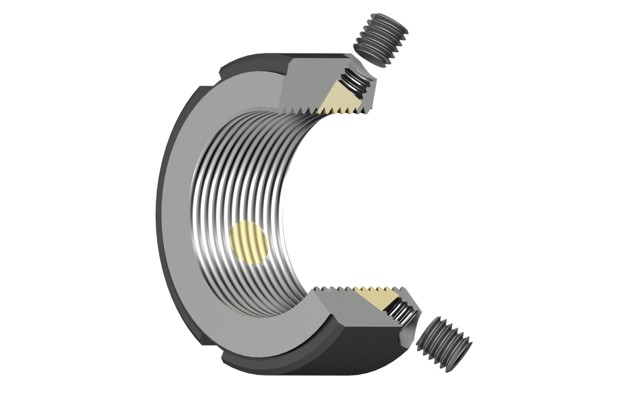

Illustration of HZMotion lock nut anti-loosening mechanism:
HZMotion lock nut product line includes the following series:
| Model | Illustration: | Coverage: | Features: |
|---|---|---|---|
| NRA |  | M4 - M40 | Radial direction locking Light duty application |
| NR |  | M6 - M40 | Radial direction locking Mid to heavy duty |
| NF |  | M14 - M100 | Hybrid direction locking Mid to heavy duty |
| NK |  | M16 - M80 | Axial direction locking Heavy duty application |
Applications
Automation applications, high-precision small to medium-sized machinery, general-precision small to medium-sized machinery, and heavy-load application scenarios.
Standard Locknut Specific Models
Technical Manual PDF Download
Search Product List
Standard Locknut
FAQ
Locknuts are used for ball screws, spindles and other applications requiring axial locking and positioning.
The NRA series is made from C45 material, while the NR/NF and NK series use 42CrMo material.
All lock nut threads in the HZMotion series are ISO 4H grade.
There is no fundamental difference in their applications. The NF-type set screw is inclined, with the locking position nearly aligned with the end face. The NR-type set screw is radial, with the locking position located in the middle of the nut’s axial length. When the lock nut has a recessed structure for locking, the NF-type allows easier tightening of the set screw.
