HZM CNC worktables cover five base-width series: HZM200, HZM240, HZM280, HZM320 and HZM400. The lineup includes single-axis, X-Y, standard, bellows-cover and telescopic-cover configurations for CNC motion platforms that require higher rigidity, positioning accuracy and load capacity.

Features

The HZM CNC worktable can be used as a CNC slide table, linear slide, CNC motion platform, CNC positioning platform or electric translation stage.
The structure includes T-slot slide, slide table, ballscrew assembly, motor bracket, bearing support unit, coupling, nut bracket, base, linear guide assembly, limit switch, lubrication distributor and optional protection covers.
Standard, bellows-cover and telescopic-cover configurations are available, with C grade and P grade accuracy options.

HZM CNC worktable lineup:

Series	Structure	Available Stroke	Accuracy / Speed	Notes
HZM200	Single-axis and X-Y worktable; 200 mm base width.	Single-axis: 100 / 150 / 200 / 250 mm X-Y: 100 / 150 / 200 / 250 mm	Max speed: C 260 mm/s, P 360 mm/s Repeatability: C +/-0.011 to +/-0.012 mm; P +/-0.003 mm	Available in standard, bellows-cover and telescopic-cover configurations.
HZM240	Single-axis and X-Y worktable; 240 mm base width.	Single-axis: 200 / 250 / 300 / 350 / 400 mm X-Y: 200 / 250 / 300 / 350 / 400 mm	Max speed: C 200 mm/s, P 290 mm/s Repeatability: C +/-0.012 to +/-0.013 mm; P +/-0.003 mm	Motor and CNC systems are configured separately; machine connection dimensions Pa and Pb can be specified by the customer.
HZM280	Single-axis and X-Y worktable; 280 mm base width.	Single-axis: 300 / 350 / 400 / 500 / 600 mm X-Y: 300 / 350 / 400 / 500 / 600 mm	Max speed: C 160 mm/s, P 230 mm/s Repeatability: C +/-0.012 to +/-0.014 mm; P +/-0.003 mm	Designed around precision ballscrew drive and paired rolling linear guides.
HZM320	Single-axis and X-Y worktable; 320 mm base width.	Single-axis: 350 / 400 / 500 / 600 / 800 mm X-Y: 350 / 400 / 500 / 600 / 800 mm	Max speed: C 160 mm/s, P 230 mm/s Repeatability: C +/-0.012 to +/-0.015 mm; P +/-0.003 to +/-0.005 mm	High-rigidity base and heavy-duty guide selection support higher combined load capacity.
HZM400	Single-axis and X-Y worktable; 400 mm base width.	Single-axis: 400 / 500 / 600 / 800 / 1000 mm X-Y overview: 400 / 500 / 600 / 800 / 1000 mm	Max speed: C 130 mm/s, P 180 mm/s Repeatability: C +/-0.013 to +/-0.016 mm; P +/-0.003 to +/-0.005 mm	Largest HZM worktable width in this lineup; intended for larger table and CNC worktable applications.

Structure Overview:

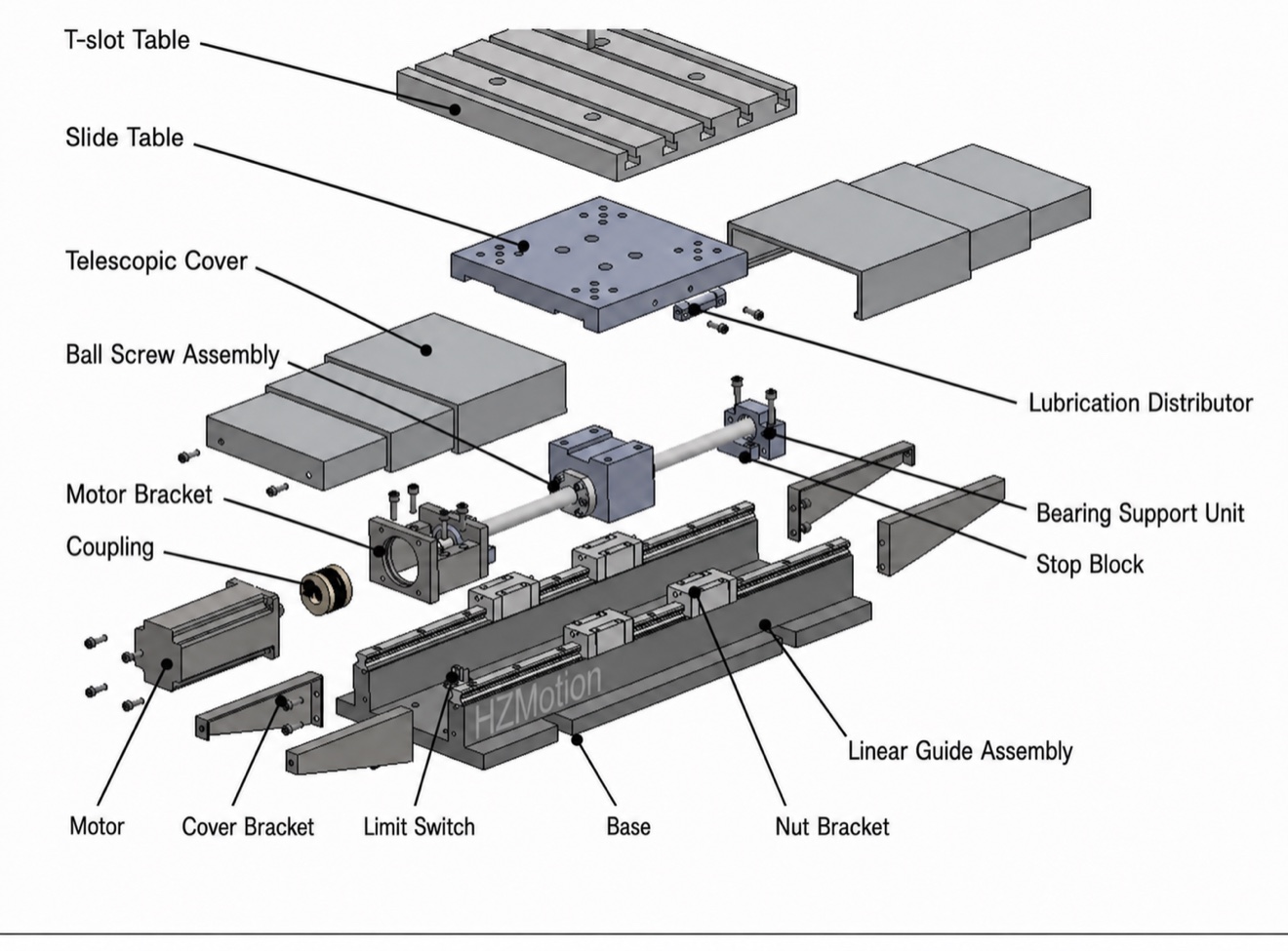

HZM CNC worktable exploded structure — HZM CNC worktable structure

Applications

Suitable for welding, wiring, drilling, gluing, robotic arms, handling, inspection devices, tomography scanning, small CNC machines and practical teaching applications.
